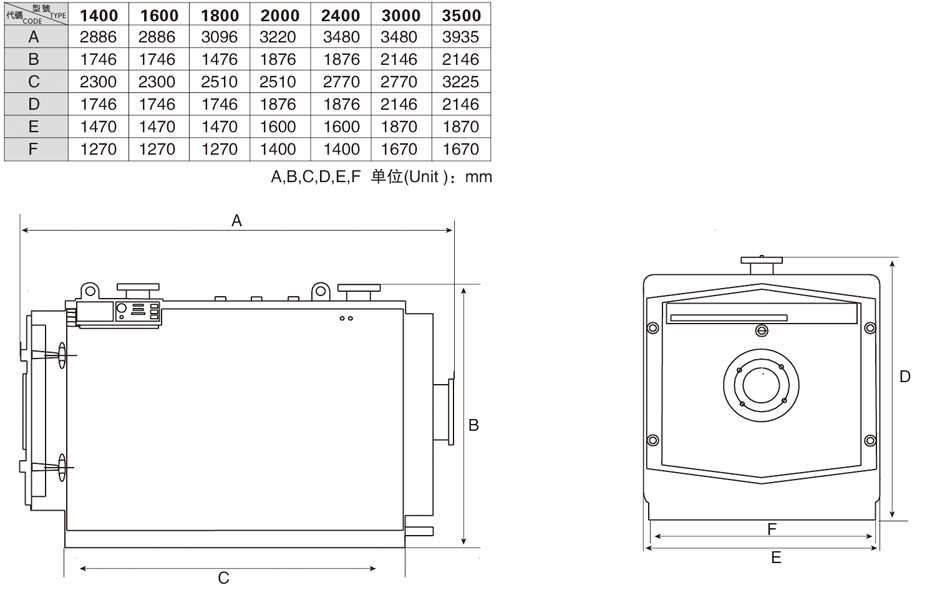

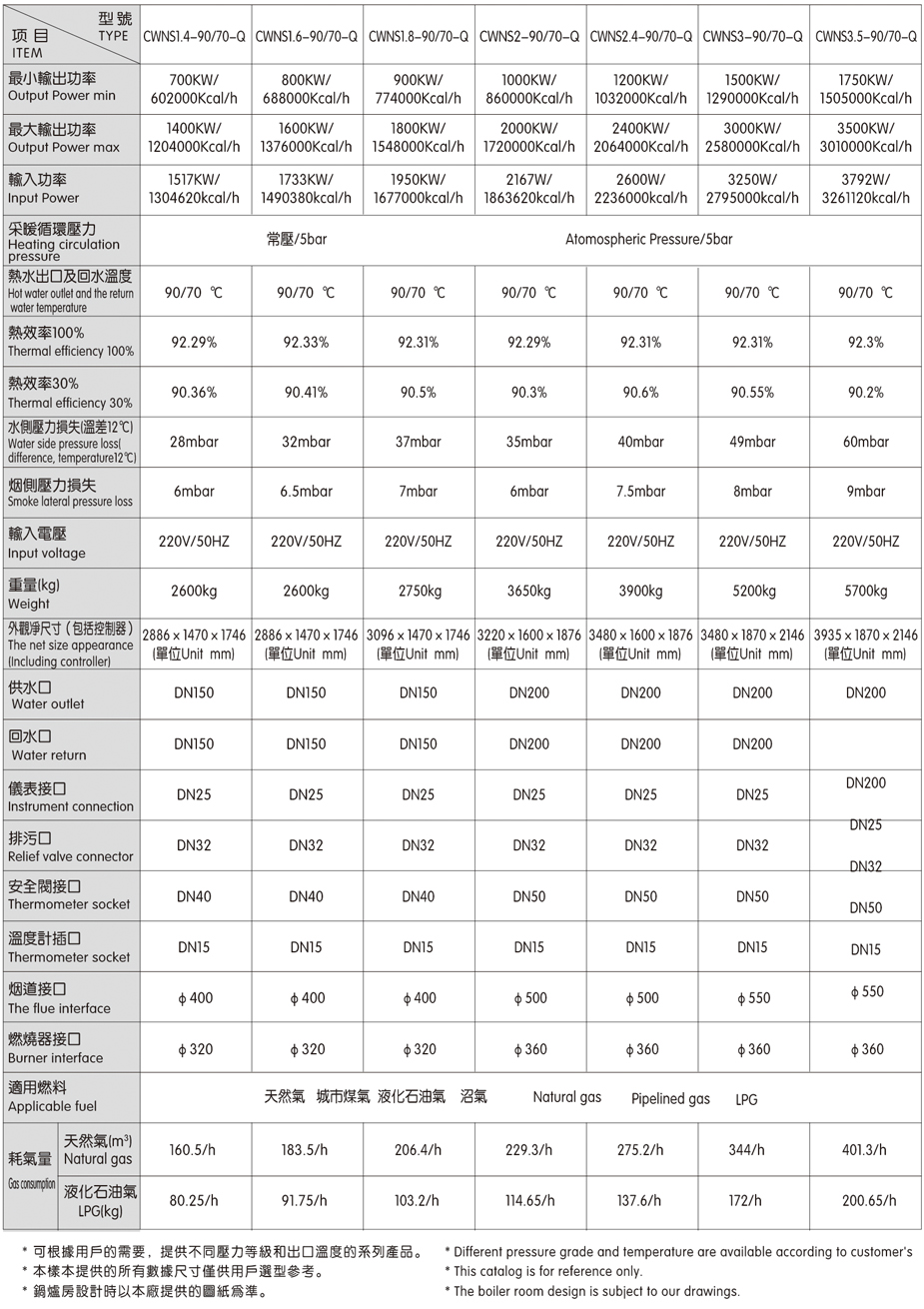

Horizontal Gas-fired Hot Water Boiler
Vertical Stainless Steel Coil Tube Structure
The design and manufacture of the boiler completely accord with and abide by the
national boiler manufacture standard of the People’s Republic of China.
Water Feed System
Water output valve, return water valve, blow down/drain valve, temperature
sensor, temperature gauge and water level electrode factory wired and plumbed
Low Water Cut-off/Level Control automatically maintains proper water level,
shutting off the boiler when water supply in the boiler drops below a safe
operating level.
Energy Savings and Minimum Maintenance
Pressure vessel insulation minimizes heat loss and maximizes energy savings,
insured by fibrous glass material.
Temperature controller allows constant observation of hot water temperature and
return water temperature. Temperature can be reset manually.
Real-time monitoring of water level: electronic water-level detecting device
Water shortage protection: The combustion control system power will be cut off
when there is water shortage along with alarm.
Leakage protection: The power will be cut off when there is leakage detected by
the control system.
Manual Reset Temperature Control provides over output water temperature cut-out
and under return water temperature restart with manual reset.
